Many people look at a massive steel grid and assume it simply holds wires in the air. They often wonder why birds perching on these high-voltage lines do not get electrocuted. The answer lies in equipotential and electrical insulation. A bird resting on a single wire does not complete a circuit to the ground. This ecological quirk perfectly illustrates the critical concept of electrical isolation. We must move beyond this layman view and examine the infrastructural reality.

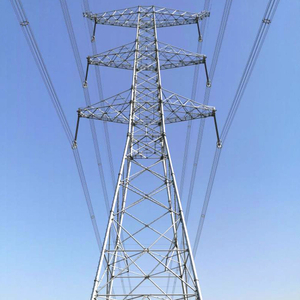

A Transmission line tower serves as the physical backbone of modern high-voltage Power Transmission and Distribution networks. Engineers design these structures to mitigate catastrophic failures. They withstand severe weather anomalies and control line sag across vast geographic distances. This guide transitions from basic definitions to a rigorous decision-stage evaluation framework. You will learn how engineers and procurement teams evaluate structural types. We outline how to align tower specifications with local compliance, physical loads, and long-term grid resilience.
Engineering Function: Towers are precisely calculated risk-mitigation structures designed to balance mechanical loads (wind, ice, line tension) while maintaining strict ground and phase clearances.
Selection Criteria: Choosing between suspension, tension, and terminal towers depends strictly on the deviation angle (0° to 60°+) and geographic topography.
Lifecycle Costs: Initial material costs are secondary to long-term OPEX. Galvanic corrosion and ad-hoc retrofits (like 5G additions) significantly impact maintenance intervals.
Compliance & Siting: Project viability is often dictated by utility easements and right-of-way restrictions rather than physical construction limits.
Utility operators face a complex logistical challenge. They must transport immense electrical loads ranging from 23kV to 765kV and beyond. They must minimize energy loss over hundreds of miles. Most importantly, operators must ensure absolute zero risk of ground faults or arc flashes. The supporting infrastructure carries this burden entirely.
Tower height is never an arbitrary choice. Engineers calculate it as a strict mathematical necessity. To prevent arcing and ensure public safety, we define the overall tower height using four specific physical clearance parameters. If you compromise on any of these variables, you risk catastrophic grid failure.
Minimum Ground Clearance (h1): The mandatory safe distance between the lowest point of the sagging wire and the earth. Topography heavily influences this number.
Maximum Conductor Sag (h2): Heat expands metal. High current and summer temperatures cause heavy conductors to droop. We must calculate this maximum expected sag.
Vertical Phase Clearance (h3): The necessary vertical distance between different energized lines. This prevents phase-to-phase short circuits during high winds.
Shield Wire Gap (h4): The gap separating the uppermost power conductor from the top-mounted lightning shield wire.

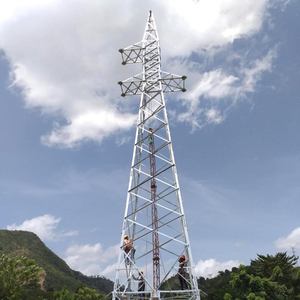

Operational realities demand incredible structural resilience. The structure must withstand three distinct load categories. First, we have dead loads. These include the static weight of the tower body, heavy glass or polymer insulators, and the massive steel-reinforced aluminum conductors (ACSR). Second, the tower must support live loads. Maintenance crews actively climb these structures carrying heavy tools.
Finally, we calculate dynamic environmental stressors. Wind shear coefficients fluctuate violently depending on altitude and terrain. Ice accumulation creates an enormous surface area. This ice catches wind and multiplies the lateral strain exponentially. Seismic events introduce unpredictable ground-level vibrations. A well-designed tower flexes just enough to absorb these dynamic loads without snapping.
Procurement teams should not view towers as simple catalog items. You must frame structural selection as a procurement decision matrix. The right choice depends on mechanical function, physical footprint, and terrain. Let us break down the primary solution categories.
The route a power line takes dictates the mechanical tension placed on the tower. We categorize these structures based on their required deviation angle.

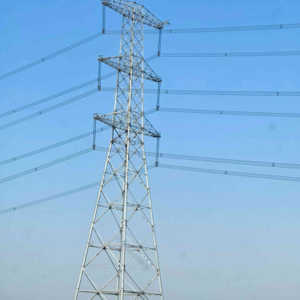

Suspension Towers (Type A): Engineers use these for straight-line runs where the deviation angle is between 0 and 2 degrees. They represent the most common and cost-effective units in any grid. However, they cannot handle high lateral tension.
Tension or Angle Towers (Type B, C, D): When the route must turn, we deploy tension towers. Type B handles 2° to 15° turns. Type C covers 15° to 30°. Type D manages extreme turns up to 60° or more. They are heavier, structurally reinforced, and naturally more expensive.
Dead-End / Terminal Towers: We build these to handle extreme unilateral tension. You will find them where lines terminate at substations or cross massive physical barriers like major rivers.
Material choices directly influence assembly logistics and footprint requirements. Here is a brief comparison chart to help you evaluate your options.

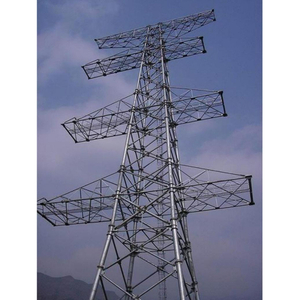

Tower Type | Structural Advantages | Best Use Case Scenarios | Primary Drawbacks |
|---|---|---|---|
Lattice Steel | High strength-to-weight ratio; transparent to heavy wind. | Mountainous terrain; helicopter assembly; remote cross-country grids. | Requires a very large physical footprint on the ground. |
Monopole / Tubular Steel | Compact base footprint; aesthetically pleasing; fast installation. | Dense urban environments; highway corridors; residential edges. | Involves much higher upfront fabrication and transportation complexity. |
A bare steel frame accomplishes nothing without its specialized attachments. We must map specific tower features to their direct operational outcomes. Each component solves a specific mechanical or electrical risk.
Wind flowing over cylindrical power lines creates aerodynamic vortices. These vortices induce high-frequency mechanical vibrations. Without intervention, this constant humming leads to severe metal fatigue. It can literally tear the conductor apart or snap the tower arms. Engineers use Stockbridge dampers to solve this. These dumbbell-shaped devices hang just below the conductors. They actively absorb and dissipate wind-induced kinetic energy before it reaches the tower joints.
Lightning strikes pose a constant threat to tall metal structures. To protect the energized lines, we install an Optical Ground Wire (OPGW) at the absolute peak of the tower. This wire acts as a lightning rod, safely channeling surges down the grounded steel frame into the earth. It also serves a dual commercial purpose. OPGW contains internal fiber-optic strands. Utilities frequently lease this high-speed data capacity to broadband providers. This transforms the peak of the structure into a highly valuable data transmission asset.
We must physically connect the live wires to the grounded steel tower without leaking electricity. Insulators achieve this critical barrier. We typically construct them from toughened glass, porcelain, or advanced polymer composites. Polymer insulators offer excellent hydrophobic properties, repelling rain and pollution. We also install arcing horns alongside these insulators. During a massive voltage surge, the excess electricity jumps across the air gap between the horns. This controlled flashover protects the fragile insulator body from shattering under thermal stress.
Implementing a grid is only the beginning of the engineering lifecycle. You must navigate the hidden realities of long-term grid management. The physical tower will face relentless environmental attacks. Labor required for high-altitude maintenance often represents the most significant variable challenge over a fifty-year lifespan.
Geography accelerates physical depreciation. You cannot use a one-size-fits-all maintenance schedule. Coastal installations face aggressive galvanic corrosion. Saltwater spray constantly attacks the galvanized zinc coatings. Without vigilant remediation, the exposed steel will rust rapidly. Conversely, northern towers endure destructive freeze-thaw cycles. Moisture seeps into micro-cracks in the concrete foundations. When it freezes, it expands violently, fracturing the subterranean support.
Authoritative frameworks remove the guesswork from maintenance. Industry standards like TIA-222-G dictate mandatory inspection and remediation cycles. We generally require comprehensive structural evaluations every 3 to 5 years. The exact interval depends on the structure type and environmental severity. A guyed mast in a hurricane zone demands far more scrutiny than a self-supporting lattice frame in a mild, arid climate. Routine visual inspections track early signs of peeling zinc, ensuring we intervene before structural steel loss occurs.
The most advanced engineering design remains completely useless if you cannot secure land access. Site planning requires careful navigation of legal, environmental, and social barriers.
Easements and right-of-way (ROW) legalities dictate your physical constraints. You must purchase or lease a corridor of land beneath the lines. The legal width of this ROW dictates the maximum allowable base width of your towers. It also governs your maximum allowable span. If you can only secure a narrow corridor, you cannot use wide-base lattice structures. You must pivot to compact monopoles. Land acquisition specialists often shape the engineering blueprint just as much as structural designers do.
Project managers frequently encounter fierce community resistance. Neighborhoods often protest high-voltage lines citing Electromagnetic Field (EMF) health concerns. You must address this pushback with transparency and scientific facts. Equip your stakeholders with evidence-based talking points.
High-voltage infrastructure emits non-ionizing radiation. Unlike X-rays, non-ionizing radiation lacks the energy to break molecular bonds or damage human DNA. Extensive global health studies show no direct health hazards from living near these lines. By establishing this scientific baseline, planners can shift contentious community conversations. You can redirect focus purely toward property line boundaries, visual aesthetics, and safe physical setback distances.
Before finalizing any tower specifications, you must perform ground-level due diligence. We recommend taking the following actions:
Conduct a geotechnical soil analysis: Soil bearing capacity dictates your foundation design. Soft soils or flood plains usually require expensive deep pier foundations.
Review aviation authority regulations: Flight paths dictate height restrictions. If you exceed specific elevations, you must integrate specialized lighting and aviation paint.
Consult local infrastructure protection policies: Proximity to highways and rail lines involves strict regulatory clearances and crash-barrier requirements.
A transmission line tower is never a simple metal stand. It is a highly engineered, mathematically precise asset. We design these structures for rigorous risk mitigation, dynamic load balancing, and maximum grid resilience. Every single component serves a distinct purpose in keeping local and national grids fully energized.
As you transition from planning to procurement, keep the following action-oriented takeaways in mind:
Align your tower selection strictly with the required deviation angles and terrain limitations.
Require comprehensive geotechnical surveys before committing to any base or foundation design.
Implement strict cold-galvanizing repair protocols when integrating third-party telecom equipment on legacy structures.
Map out your legal right-of-way constraints early, as they dictate your choice between lattice frames and monopoles.
Proactive collaboration prevents expensive delays. We strongly encourage project engineers and procurement officers to consult with structural fabricators early in the design phase. To ensure your specifications align with environmental loads and local compliance standards, please feel free to contact us. Early integration guarantees a more resilient, reliable infrastructure rollout.
A: No. The steel structure itself is firmly grounded and uncharged. Power flows exclusively through the highly conductive overhead lines. Heavy-duty glass, porcelain, or polymer insulators separate these energized conductors from the steel frame, ensuring the tower remains safe and electrically neutral.
A: Most engineered steel towers boast a lifespan of 30 years or more. However, this longevity is entirely contingent on the surrounding geographic environment and strict adherence to anti-corrosion maintenance. Coastal salt spray or severe freeze-thaw cycles can drastically reduce this timeline without routine rust remediation.
A: Engineers bundle conductors to handle extreme voltages (typically above 220kV). Grouping several wires together increases the effective radius of the line. This configuration significantly reduces line inductance, increases current-carrying capacity, and prevents energy loss caused by corona discharge and audible electrical humming.
A: Several strict factors govern height. Engineers must account for the maximum expected line sag, minimum safe ground clearance, and necessary vertical separation between different phases. Additionally, local aviation authority regulations and topography constraints—such as crossing active railways or highways—often dictate absolute height limits.
