Network expansion demands a constant balance between load capacity, site constraints, and deployment budgets. Modern engineers face an ongoing challenge to build robust infrastructure rapidly and reliably. You must deploy structures capable of handling massive equipment loads while strictly navigating complex geographic limitations. Network demands grow daily, leaving little room for structural inadequacies.
While monopoles and guyed masts definitely have their place in certain scenarios, angular steel towers remain the absolute backbone of heavy-duty telecom infrastructure. They provide unmatched structural rigidity and modular scalability for the most demanding physical environments. Their open lattice design efficiently distributes intense environmental stresses away from sensitive communication equipment.
This guide provides a direct, engineering-aligned framework for evaluating and selecting a telecom angular tower. We will explore how to properly vet the right manufacturing partner for your upcoming project. You will learn the critical structural metrics needed to ensure long-term deployment success.
Network operators face incredibly heavy equipment loads today. The rapid rollout of modern technology adds immense weight to newly constructed cell sites. Heavy 5G MIMO antennas quickly replace older, lighter panels. Massive microwave dishes compound this physical stress significantly. Operators must also navigate strict budgetary limits during site development. You cannot simply construct massive solid concrete structures everywhere you need signal coverage.
The angular steel lattice structure solves these distinct engineering challenges effectively. It offers a highly practical balance between absolute structural strength and ground logistics. We can break down these advantages into two primary mechanisms.
First, consider geometric rigidity. The lattice design brilliantly disperses high-altitude wind sheer. Wind passes directly through the open geometric framework seamlessly. This prevents the main tower body from acting like a massive solid sail. High winds simply cannot find enough flat surface area to push against. The crisscrossing steel members absorb and redistribute the remaining aerodynamic forces down to the foundation.
Second, angular structures deliver massive freight efficiency. Manufacturers design these specific towers for complete breakdown. You can flat-pack the individual steel members tightly into standard maritime shipping containers. This modularity lowers logistics costs dramatically compared to shipping bulky tubular structures. Transport teams can move flat-packed steel over rough rural roads easily.
However, engineers must acknowledge a few skeptical-friendly trade-offs. Angular structures require a significantly larger ground footprint than simple monopoles. You need more land to accommodate the sprawling base foundation. They also face stricter aesthetic zoning limits in densely populated urban environments. City planners often prefer slim monopoles for visual reasons. You must carefully evaluate your specific site location before committing to a lattice design.
Engineers must choose the correct base geometry for every single site. This crucial decision shapes the entire foundation design and overall structural stability.
Three-legged structures offer distinct advantages for specific deployment scenarios. They serve as excellent choices for sites facing moderate footprint restrictions. You typically see these towers utilized for heights between 20 meters and 60 meters. The triangular base fits exceptionally well into tight municipal lease areas.
When evaluating cost versus performance, three-legged designs shine brightly. They use fewer vertical legs and internal bracing members. Lower total steel volume naturally means reduced raw material costs. You save significant money on manufacturing and shipping. However, this design requires highly optimized foundation engineering. The three anchor points bear intense concentrated loads during severe high wind events. You must rely on deeper concrete piers to ensure absolute stability.

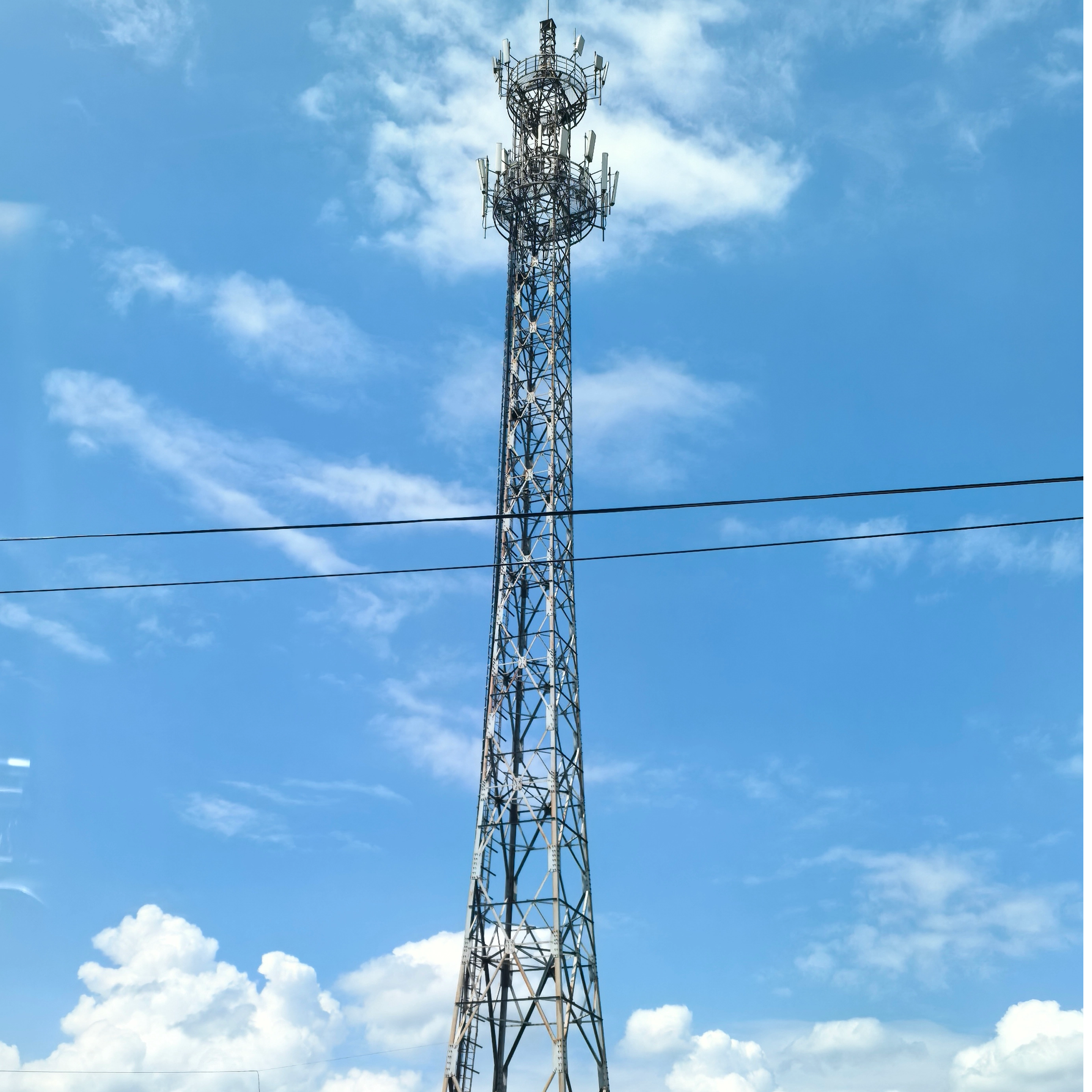

Four-legged structures represent the ultimate standard for massive infrastructure hubs. You will deploy these for heavy-duty hub sites and complex macro-cell environments. They easily support structural heights exceeding 60 meters, often reaching well past 100 meters. The square base provides unparalleled foundational stability across diverse terrains.
We must analyze the cost versus performance metrics carefully here. A four-legged design demands a much larger ground footprint. It also carries a noticeably higher initial base cost due to the extra steel. Yet, it provides maximum torsion resistance. Densely packed, multi-directional antenna arrays create intense twisting forces up high. The four-legged geometry resists this twisting far better than a triangular base.
| Design Feature | 3-Legged Angular Tower | 4-Legged Angular Tower |
|---|---|---|
| Base Footprint | Moderate (Triangular) | Large (Square) |
| Standard Height Range | 20m - 60m | 60m - 100m+ |
| Torsion Resistance | Good | Excellent |
| Primary Application | Suburban zones, tight leases | Heavy hub sites, severe wind zones |
| Relative Base Cost | Lower | Higher |
Procurement teams must look well beyond basic pricing sheets. You must evaluate critical engineering dimensions to guarantee structural integrity. Skipping these evaluations invites catastrophic failure.
Your procurement process requires strict verification of operational wind speeds. You must check ratings for standard conditions, typically around 120 km/h. You also need survival wind speed ratings exceeding 200 km/h for cyclone-prone regions. The steel framework must withstand these extreme forces without yielding.
Engineers must calculate the Effective Projected Area (EPA) meticulously. Factoring in the Effective Projected Area (EPA) of all current and future mounted telecommunication tower equipment is non-negotiable. An overloaded structure will face severe buckling during extreme weather. Always leave a generous EPA margin for subsequent antenna upgrades.
Follow these steps to assess EPA correctly:
Material selection dictates the exact physical lifespan of your infrastructure. We highly recommend standardizing on reliable high-yield steel. Look closely for Q235, Q345, or their exact ASTM equivalents during evaluation. High-yield steel bends slightly under extreme pressure instead of snapping abruptly. This elasticity saves structures during unexpected wind gusts.
Corrosion protection is equally vital for long-term physical viability. You must evaluate the hot-dip galvanization thickness rigorously. Ensure the manufacturer complies strictly with ASTM A123 standards. Proper galvanization ensures a 30 to 50-year lifespan. This protection becomes especially crucial in high-humidity areas or highly corrosive coastal environments.
Network carrier demands change rapidly over a decade. Your infrastructure must adapt without requiring entirely new replacement structures. We advise selecting standardized modular sections for your initial build. Modular designs allow for seamless future height extensions. You can bolt new sections onto the top easily. This smart strategy prevents you from executing a costly, full site tear-down later.
Even the absolute best steel structure fails without proper site implementation. You face several formidable installation risks in the field. Careful planning mitigates these dangers.
Geotechnical requirements often surprise inexperienced project managers. The physical steel cost represents only half the deployment equation. Rigorous soil testing dictates the required foundation depth. It also determines the exact concrete volume needed for the structural base. Soft sandy soil requires massive concrete rafts or deep piling. Rocky terrain might allow for shallower rock anchors. These ground variations heavily impact your total project return on investment.
Erection logistics demand careful planning and strict execution protocols. You must evaluate rural site access roads thoroughly. Flat-packed materials require massive flatbed delivery trucks. Once on site, erection crews require heavy crane access. They also need significant ground laydown space.
Crucial site layout requirements include:
The crew pre-assembles large sections on the ground before lifting them. A cramped site drastically slows down the installation process. Crews sometimes use gin poles for locations lacking crane access. Gin pole erection takes significantly longer. You must factor this extra labor time into your schedule.
Safety and maintenance require upfront investment during the procurement phase. You must assess the inclusion of integrated safety climb systems. Cables and fall-arrest rails protect technicians during dangerous vertical ascents. You should also specify the inclusion of comfortable rest platforms every 20 meters. Finally, demand robust anti-vandalism features at the ground level. Security covers for climbing pegs prevent unauthorized access effectively.
Finding a trustworthy manufacturing partner requires diligent investigation. You cannot simply pick the lowest bidder from an online directory.
You must verify their manufacturing standards immediately. Do they manufacture strictly to recognized local and international codes? A reputable partner builds to EIA/TIA-222-G or H standards reliably. In European markets, they must follow Eurocode 3 precisely. Ask for independent third-party audit reports to confirm their compliance claims.
A highly credible angular tower supplier guarantees full manufacturing transparency. They provide certified mill test reports for all raw steel. They also deliver detailed galvanization reports for every single production batch. You should be able to trace every steel member back to its original forge. This strict traceability prevents the dangerous use of substandard recycled metals.
Look closely for suppliers who conduct rigorous pre-assembly testing. Top-tier manufacturers perform a complete trial assembly of the very first unit. They build the structure horizontally in the factory yard. This vital step guarantees zero bolt-hole misalignment when the materials reach your site. Field drilling is dangerous, slow, and strips away the protective galvanization layer.
Key checks during Factory Acceptance include:
Finally, evaluate their specific packaging procedures. You must know exactly how they bundle the steel members. Poor packaging allows heavy members to shift and bend violently. This causes severe deformation during turbulent sea freight. It also damages materials during rough overland transport. Ask for photos of their standard export packaging methods before signing contracts.
Selecting the right angular geometry is a complex exercise in balancing physical loads. You must weigh anticipated network loads directly against site-specific geographic realities. The physical environment heavily dictates your foundation strategy. Meanwhile, your modern equipment choices dictate your required structural rigidity.
Action-oriented next steps for procurement teams:
A: The typical height ranges from 20 meters to well over 120 meters. The exact height depends on whether you select a 3-legged or 4-legged structure. It also depends heavily on your specific signal coverage radius and local zoning restrictions.
A: Angular steel is typically much more cost-effective to manufacture. It is significantly easier to modify or reinforce post-installation. It also costs less to transport because it flat-packs efficiently. However, tubular towers do offer less wind resistance and a slimmer visual profile.
A: Suppliers need the required structural height and the design wind speed. They also require the antenna equipment loading parameters (EPA), the requested steel grade, and the specific regional design codes (like TIA-222) to generate an accurate quote.
