Designing and deploying a high-voltage transmission network requires intense engineering precision. Grid operators must balance structural integrity, massive capital expenditure, and strict regulatory compliance. The selection of an Electrical tower dictates the long-term reliability of the grid. It directly influences your maintenance overhead and determines the spatial footprint of the entire project.
We often view these structures simply as static steel frames. However, modern transmission systems act as highly engineered assets. They manage dynamic weather loads seamlessly. They mitigate complex electrical harmonics. They also navigate demanding terrain clearances and public infrastructure safely.
Our goal is to provide a comprehensive, engineering-oriented breakdown of these critical structures. You will learn about their anatomy, functional categorizations, and vital load requirements. We will also cover the strict compliance metrics you need for successful project scoping.
Distinct Upstream Role: Unlike downstream utility poles, electrical transmission line towers are engineered for bulk power transfer, handling voltages from 66 kV up to Ultra-High Voltage (UHV) lines exceeding 1,000 kV.
Load and Environmental Dynamics: Tower design relies on calculating exact height requirements (clearance + sag + wire spacing) and managing distinct stress factors, separating static "weight span" limits from dynamic "wind span" thresholds.
Categorization by Function and Form: Selection depends on line trajectory and terrain, shifting between suspension towers for straight lines, tension towers for anchor points, and transposition towers for phase balancing.
Strict Compliance Realities: Deployment requires adhering to rigid environmental and infrastructure crossing standards, including specific minimum clearances for roads, railways, and hazardous zones.
You must first understand the upstream distinction of these structures within the power grid. An Electrical transmission line tower operates strictly at the bulk transmission stage. It carries massive electrical loads from generating power plants directly to regional substations. This contrasts sharply with low-voltage distribution utility poles. Those smaller wooden or concrete poles connect power directly to end consumers. High-voltage structures require vastly different engineering frameworks to handle extreme thermal and mechanical stresses.
Global terminology for these structures varies significantly. Professionals in the United States commonly refer to them as "transmission towers." European engineers often use the term "electricity pylon." They adopted this word because the lattice design visually resembles ancient tapered obelisks. In regions heavily reliant on hydroelectricity, such as Canada, you will frequently hear the term "hydro tower." Regardless of the name, their core function remains identical worldwide.
Baseline specifications highlight the immense scale of these structures. A typical high-voltage model ranges from 15 meters to 55 meters in height. However, engineers scale these dimensions up drastically for specialized crossings. Ultra-High Voltage (UHV) towers crossing massive rivers or deep valleys can reach towering heights of up to 300 meters.
A fully functional system relies on a precise combination of structural steel and specialized electrical hardware. We can divide the anatomy into physical framing and conductive integrations.
Transmission towers are designed to withstand mechanical loads and environmental exposure. Their main structural components include:
Peak & Ground Wire: The top section supports the ground wire, which protects the line from lightning strikes.
Cross Arms & Boom: These members support the conductors and maintain the necessary electrical clearance.
Cage & Legs: The cage forms the main body of the tower, while the legs transfer loads to the foundation.
In addition to the tower structure, several electrical components are required:
Conductors: Typically ACSR cables used for three-phase power transmission.
Insulators & Arcing Horns: Insulators isolate live conductors from the tower, while arcing horns help protect against surge damage.
Stockbridge Dampers: These devices reduce wind-induced vibration and help prevent conductor fatigue.
Engineers categorize these structures using two distinct metrics: line function and structural design. Line function dictates how the structure handles cable tension. Structural design dictates the materials used and the geographical footprint.
Line function defines the mechanical duty of each tower within the network. The primary functional types include:
Suspension Towers: Used on straight sections to support conductor weight and wind load with minimal deviation.
Angle / Deviation Towers: Used where the route changes direction and lateral conductor forces must be resisted.
Tension / Strain Towers: Designed to withstand high longitudinal conductor tension and isolate mechanical failure between sections.
Dead-End / Terminal Towers:Placed at line ends or substation connections to resist unbalanced one-sided loads.
Terrain, budget, and local aesthetics drive the structural form factor. The table below illustrates the most common design variations.
Tower Type | Material & Structure | Primary Advantages | Best Use Case |
|---|---|---|---|

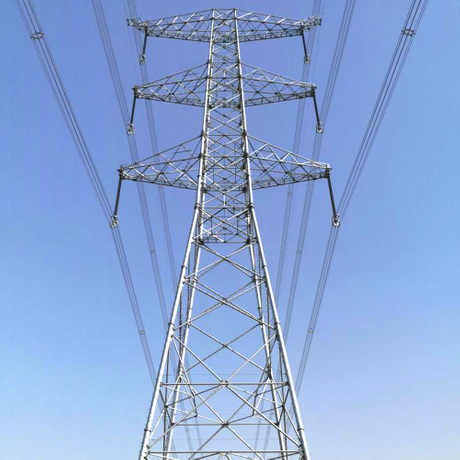

Lattice (Angular) | Open-frame structure composed of interconnected galvanized steel angle members. | Highly cost-effective, lightweight, and efficient for long spans and high-voltage transmission. | Standard solution for high-voltage and long-distance rural routes. |

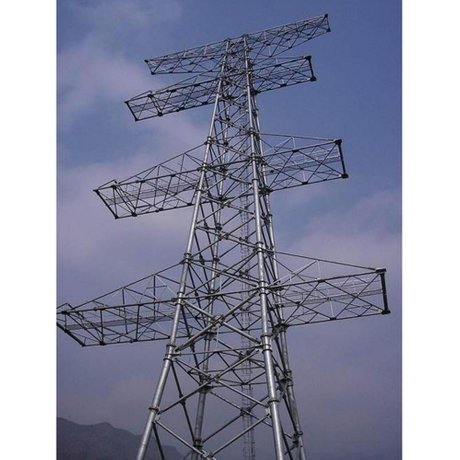

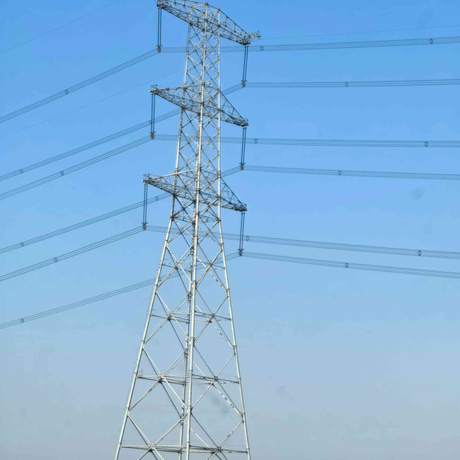

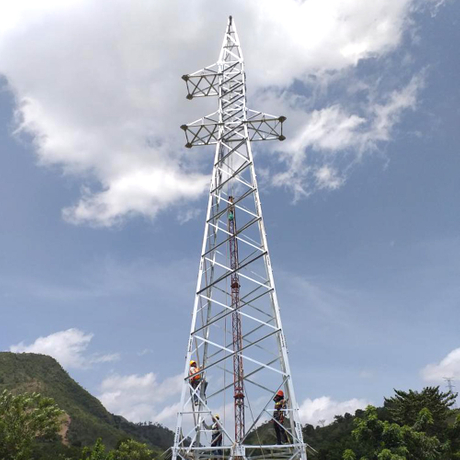

Lattice (Tubular) | Open-frame structure formed by tubular steel members arranged in a lattice configuration. | Improved aerodynamic performance, high structural efficiency, and a cleaner modern appearance. | High-wind regions, coastal environments, and specialized crossing applications. |

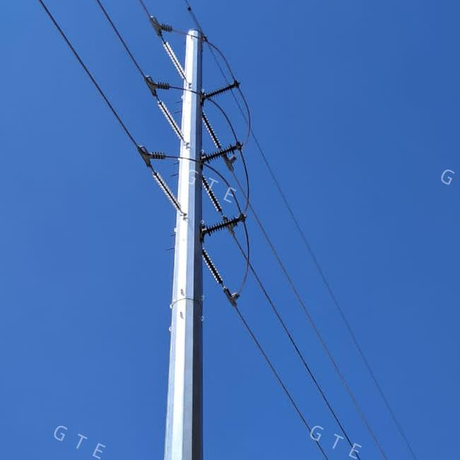

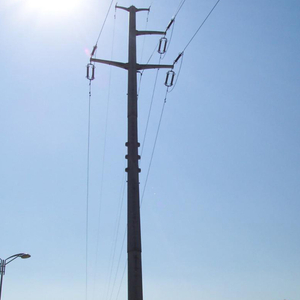

Monopole | Single-pole hollow steel structure, typically tubular. | Small footprint, faster installation, and better visual acceptance in developed areas. | Urban environments, suburban corridors, and right-of-way constrained sites. |
Specifying tower dimensions involves rigorous mathematical modeling. Grid planners cannot guess these numbers. Total height is entirely non-negotiable and dictated by strict safety parameters.
Engineers determine the required physical dimensions using a specific formula. The total height of the structure equals the sum of four critical variables:
Minimum Ground Clearance: The mandatory safe distance between the lowest sagging wire and the ground.
Maximum Conductor Sag: The lowest point the cable reaches during peak summer temperatures. Heat expands the metal and increases the sag.
Vertical Phase Spacing: The mandated distance between the different electrical phase tiers to prevent arcing.
Ground Wire Clearance: The required space between the top conductor and the lightning shield wire.
Engineers must calculate two distinctly different load categories. You cannot confuse weight span with wind span. The weight span dictates static load calculations. It accounts for the literal vertical weight of the cable, plus any accumulated ice or snow. Conversely, the wind span dictates dynamic aerodynamic pressures. It measures the lateral force exerted by gale-force winds pushing against the surface area of the cables and the steel frame. Balancing both metrics ensures structural survival during winter storms.
Transmission lines rarely run in a perfectly straight path. When the route turns, the tension dynamics change instantly. Engineers classify line deviations into strict thresholds. Type A towers handle 0 to 2 degrees of deviation. Type B towers manage 2 to 15 degrees. Type C structures accommodate 15 to 30 degrees. Finally, Type D models withstand steep 30 to 60-degree turns. Using a Type A structure on a Type C curve will result in catastrophic failure.
Deploying lines over public infrastructure demands mandatory deployment specifications. You cannot risk a live high-voltage wire dropping onto a highway.
Railway Crossings: Railway standards require strict adherence to tower height-to-track ratios. Standard requirements often mandate a minimum vertical clearance of at least 17.9 meters above the rails.
Road & River Crossings: Engineers utilize double tension hardware for these critical spans. We deploy dual insulator strings. This redundancy ensures that if one insulator fails, the second one prevents catastrophic failure over the public infrastructure below.
Modern grid deployment extends far beyond structural math. You must navigate a complex web of legal, environmental, and safety regulations.
Adhering to international standard codes is mandatory. For instance, European deployments must follow the rigorous PN-EN 50341-1 standard. This framework dictates acceptable structural integrity limits. It also enforces strict minimum distances from residential buildings to limit public exposure to low-frequency electromagnetic fields.
Safety regulations enforce strict implementation red lines regarding explosive environments. You cannot build high-voltage lines near combustible materials. Standard codes mandate maintaining a minimum 30-meter radius away from any explosion-risk areas. This includes fuel stations, chemical plants, and natural gas storage facilities. Violating this clearance guarantees project rejection during the permitting phase.
Today, a Transmission line tower often serves multiple environmental and technological purposes. We can integrate them smoothly into local ecosystems and communication networks.
Avian Protection: Biological interactions present a massive challenge for grid reliability. Bird droppings can coat insulators, causing immediate flashovers and regional power outages. Furthermore, large birds frequently suffer electrocution. Modern designs incorporate specialized, electrically isolated nesting platforms. These platforms encourage birds to roost safely away from the live phases.
Asset Colocation: We see a massive growing trend in leveraging existing structural capacity. Grid planners frequently lease space on the upper peaks to host telecommunications antennas. They also mount meteorological sensors, such as anemometers. This colocation strategy maximizes the utility of the steel structure and reduces the need to build separate towers nearby.
Specifying a high-voltage structure is never a standardized, off-the-shelf purchase. It remains a deeply site-specific engineering challenge. Voltage loads, terrain topography, and strict compliance codes entirely dictate the final design.
We recommend grid planners and procurement teams take specific actionable steps. First, conduct thorough geotechnical surveys to understand your foundation requirements. Second, finalize your wind and weight load-span calculations before shortlisting lattice versus monopole configurations. Third, engage with experienced tower fabricators early in the design phase to avoid costly compliance redesigns. To discuss your specific geographic and structural needs, connect with our Transmission line tower engineers today.
A: A transmission structure handles bulk high voltage from power plants to substations, operating between 66 kV and 1,000+ kV. A distribution pole handles local, low-voltage power (usually below 33 kV) and steps it down to connect directly to residential homes and businesses.
A: They use a non-conductive shield wire, or earth wire, mounted at the very peak of the structure. It absorbs incoming lightning strikes. Arcing horns also help redirect any surge currents safely into the grounded steel frame instead of the live cables.
A: Shape variations dictate the circuit capacity and phase spacing requirements. For example, a Danube shape optimizes space for a double-circuit layout, while a Delta shape handles single-circuit layouts efficiently. The shape directly prevents the cables from swinging into each other.
A: Builders primarily use heavy-duty galvanized steel for the superstructure. Galvanization provides exceptional longevity and corrosion resistance against harsh weather. We use reinforced concrete for the deep foundation anchors to provide immense counter-weight stability against wind loads.
