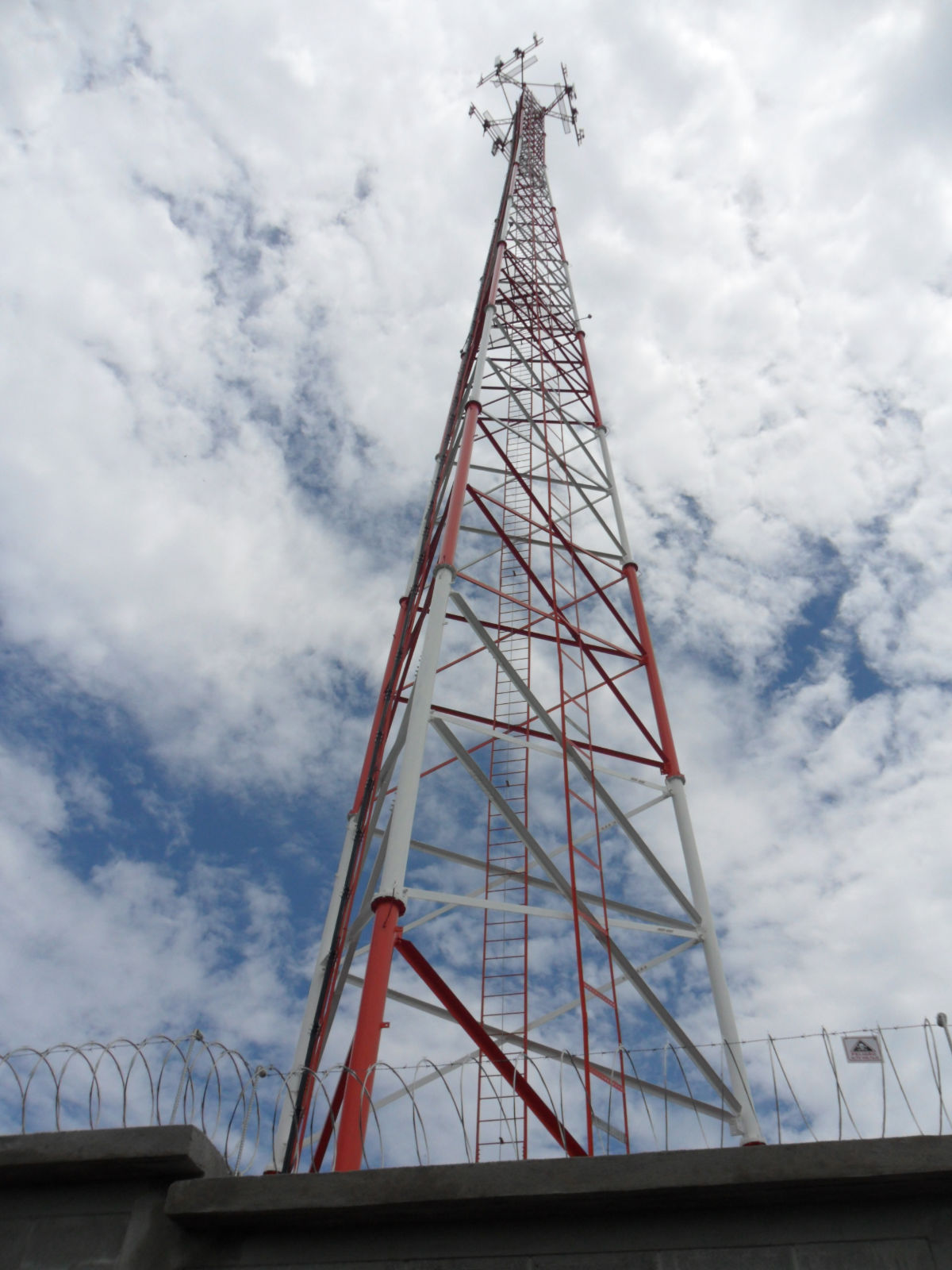

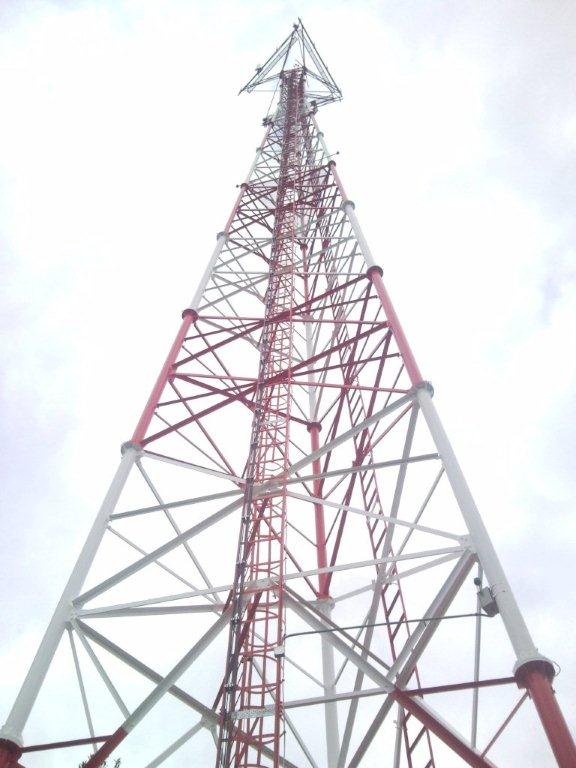

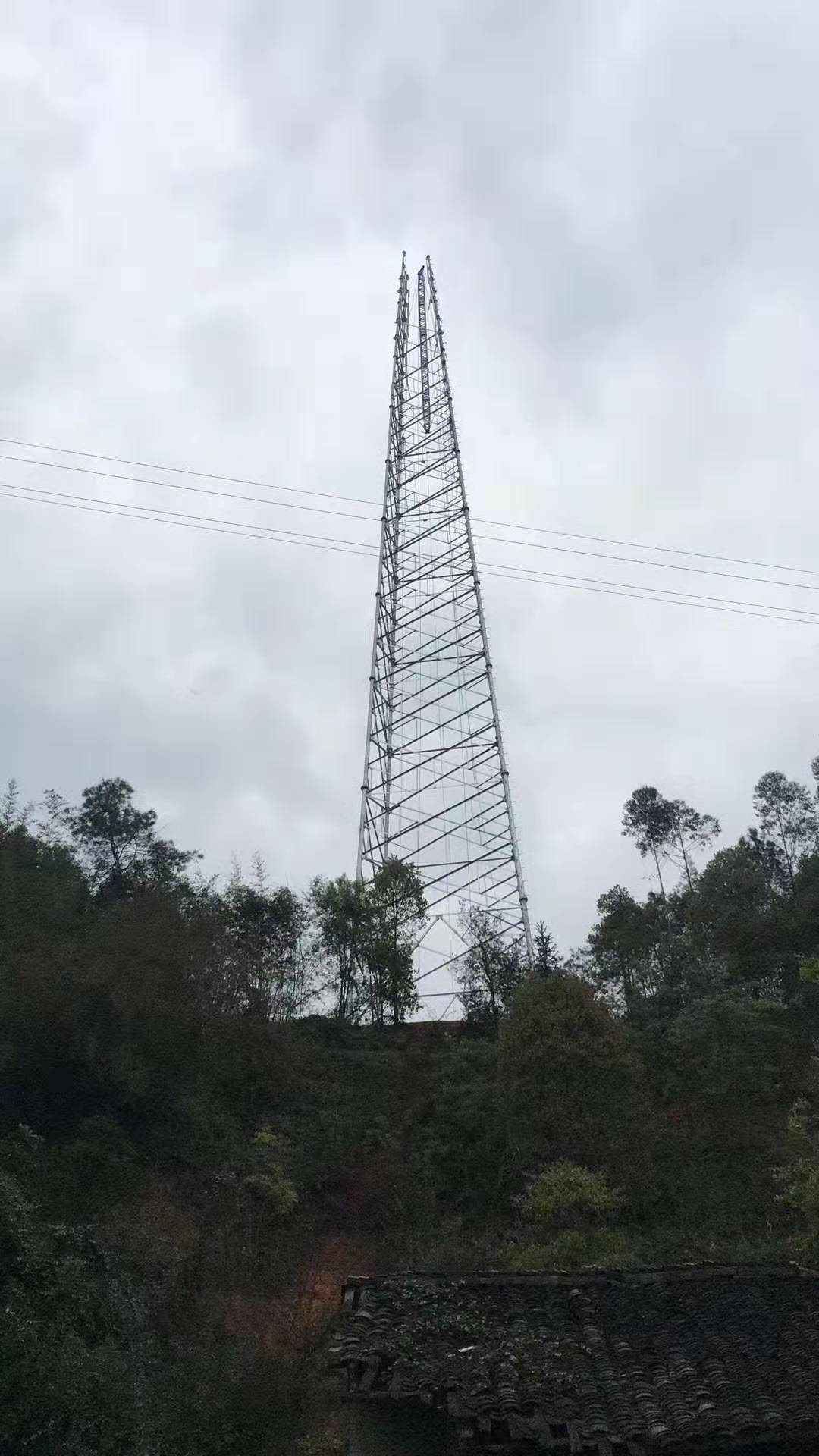

Tubular Tower
HY/GTE
7308900000
| Quantity: | |
|---|---|
Step into a new era of superior communication with the Monopole Telecommunication GSM Antenna Tubular Pole Mobile Tower from Ningbo HY Communication Equipment Co., Ltd. Meticulously engineered for outstanding precision and crafted with a commitment to excellence, this tower delivers remarkable performance, elevating your telecom infrastructure to new heights.
NINGBO HY COMMUNICATION EQUIPMENT CO., LTD
Telecommunication Tower & Accessories - Goods Description and Major Parameters
| No. | Description | Detailed Specification and Major design Parameters |
| 1 | Design Code | ANSI/TIA222G, European Standard, and others |
| 2 | Design Loading | 1. Antenna load area as specified by Clients worldwide. 2. Wind speed as requested by the clients. 3. Deflection & Twist Angle, Exposure category, Topographic category as per specified by clients. |
| 4 | Structure Classification | II |
| 5 | Hot-dip galvanization | ISO 1461 2009, ASTM A123 |
| 6 | Steel Grade | 1. High strength low alloy structural steel: Q420B which is equivalent to ASTM Gr60 2. High strength low alloy structural steels: Q345B which is equivalent to ASTM Gr50 or S355JR 3. Carbon Structural Steel: Q235B which is equivalent with ASTM A36 or S235JR |
| 7 | Bolts and Nuts | Mainly ISO 898 grade 6.8 and 8.8 bolts |
| 8 | Foundation | 50KPa, 100KPa, 150KPa soil bearing capacity mainly. |
| 9 | Tower Type | 1. 3 Leg Self-supported Angular Towers 2. 3 Leg Self-supported Tubular Towers 3. 4 Leg Self-supported Angular Towers 4. 4 Leg Self-supported Tubular Towers 5. Guyed Mast 6. Monopole Tower 7. Camouflaged Tower: Palm Tree, Pine Tree, Coconut and others tree 8. RDS Tower: Rapid Deploy Site/Tower 9. Rooftop Towers 10. Smart Poles |
| 10 | Warranty | 1. Tower structures: 10 years 2. Camouflaged towers a. Barks: 10 years b. Branches and leaves: 3 years |
| 11 | Return Period | 50 Years |
| 12 | Accessories | 1. Paint kits (ICAO standards): Water Based Acrylic Anticorrosive Paint which include Primer, International Orange/Red, and Ivory White 2. Aviation Light: 48V/220V Double Light and Single Light & Solar Light 3. Lightning System: A lightning rod with 70mm2 G/Y copper cable down conductor or 25x3mm copper flat tape with clamps, and copper coated steel busbars or as specified by clients. 4. Earthing System: Earthing Rod with copper-clad steel strand cable and lugs etc. or as specified by Clients. 5. ACDB as specified by clients 6. Fencing: Palisade fence and wire mesh fence with razor wires and gate. 7. Fall arrest system: GB and CE certificate fall arrest system. 8. Optical Fiber Cable: as specified by the client 9. Generator: as specified by the client 10. Canopy and Generator Cage: as specified by clients |
1. Firstly, Ningbo HY Communication Equipment Co., Ltd. boasts a prestigious and storied legacy within the industry, seamlessly blending invaluable experience with unparalleled professionalism in production. Our extensive portfolio of superior quality products is meticulously designed to cater to the ever-evolving requirements of our esteemed clients.
2. Secondly, our impressive international export record speaks volumes, with successful expansions into 70 nations. This showcases our profound expertise in global commerce and our dedication to delivering exceptional value worldwide.
3. In conclusion, our steadfast dedication to customer satisfaction is unwavering. The trust and confidence we've earned from our valued clients stand as our most treasured success, and our commitment to delighting each customer is at the heart of our mission.
